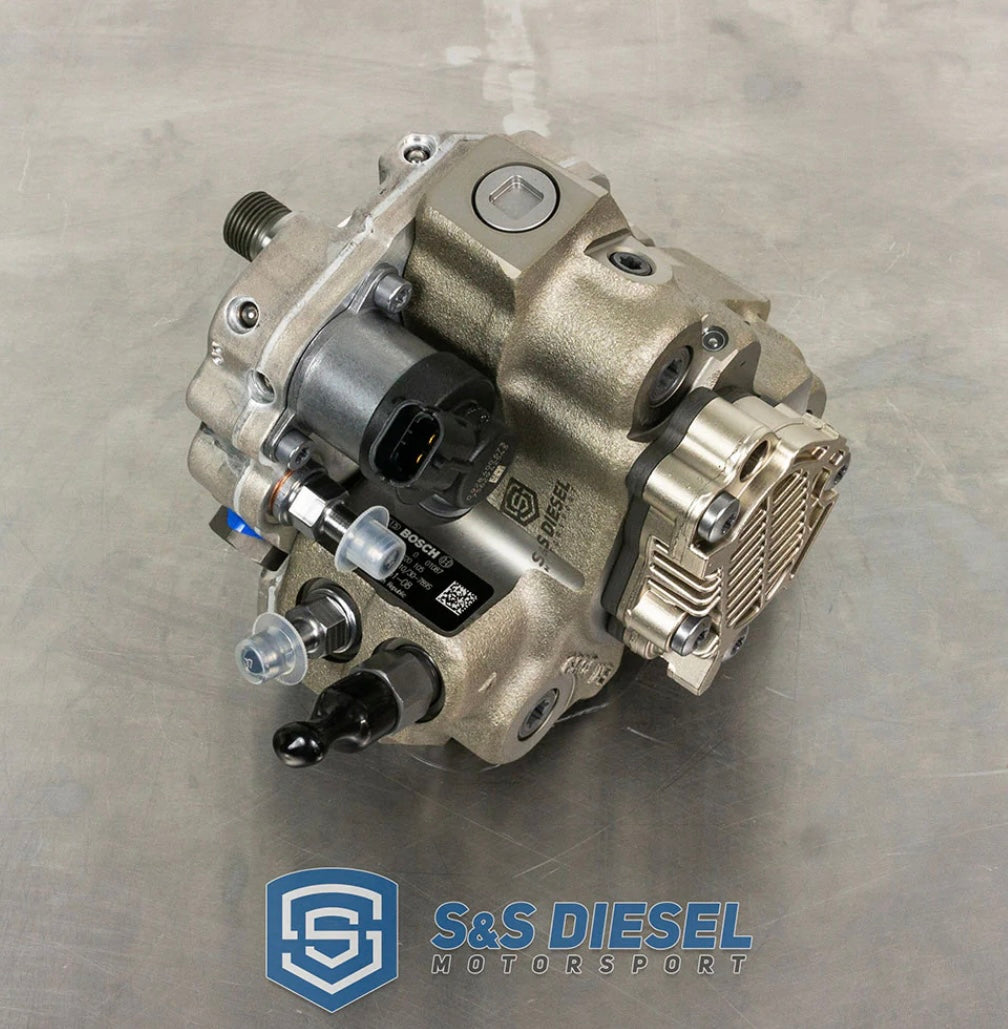

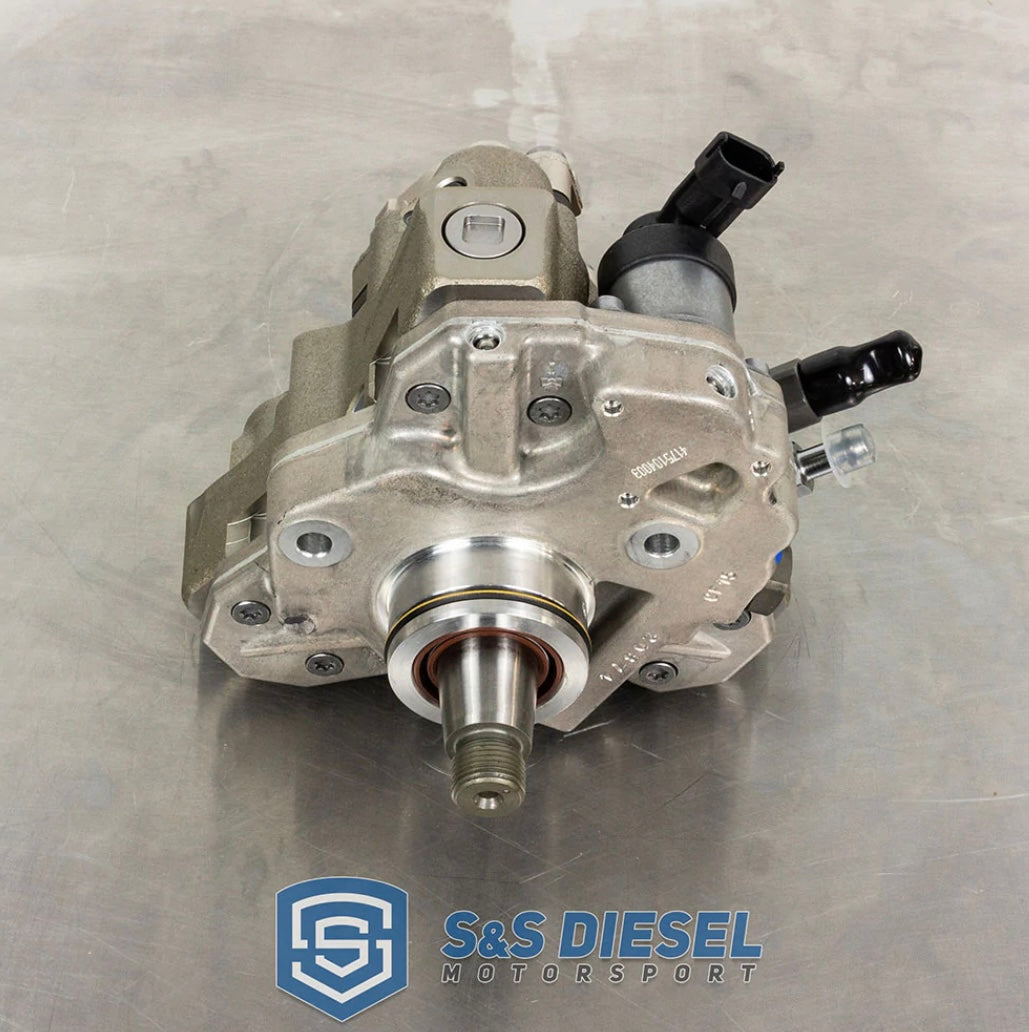

S&S Diesel Duramax High Pressure CP3 Pump

PLEASE NOTE: TUNING IS REQUIRED FOR USE WITH OVERSIZED INJECTION PUMPS. FEEL FREE TO MESSAGE US FOR TUNING QUESTIONS.

Duramax SuperSport CP3 – New – (higher output >3,500 rpm)

Duramax 10mm CP3 – New – (1,325 mm3 /rev displacement)

Duramax 10mm High Speed CP3 – New – (1,325 mm3 /rev displacement, high speed optimized)

Duramax 12mm CP3 – New – (1,590 mm3 /rev displacement)

Duramax 12mm High Speed CP3 – New – (1,590 mm3 /rev displacement, high speed optimized)

Duramax 12mm High Speed CP3 – New – (1,590 mm3 /rev displacement, high speed optimized) with SP3000 Supply Pump

Duramax 14mm CP3 – New – (1,850 mm3 /rev displacement)

Duramax 14mm High Speed CP3 – New – (1,850 mm3 /rev displacement, high speed optimized)

Duramax 14mm High Speed CP3 – New – (1,850 mm3 /rev displacement, high speed optimized) with SP3000 Supply Pump

Download SP3000 Supply Pump Data Sheet

The SP3000 is a single mechanical solution that replaces the small factory supply pump, and will flow up to 3,000 l/hr, at pressure. It is designed to be used with the S&S Regulated Filter Head and Gear Pump Delete kits to create a Fuel Delivery System (FDS) capable of supporting up to four 14mm CP3 (1,850 mm3 /rev displacement) high pressure pumps.

-Flow Rate – 3,000 liters per hour
-Max Pressure – 400 psi
-Volume – 13,000 mm3/rotation
-Weight – 1,271 g
-Aluminum and Steel Construction
-Inlet Fitting Sized For Initial Flow Control
